Modern Electrical Systems: Definition and Role of the Earth Pit
In the design of modern building and industrial facility electrical safety, the Earth Pit plays a crucial role. It is not only the core physical facility of the grounding system but also the safety valve that ensures the smooth discharge of fault currents into the ground. As an experienced manufacturer in the field of lightning protection and grounding, Shaoxing Sweld Electric Co., Ltd. is committed to providing stable grounding solutions for global customers through high-standard component research and development.
What is an Earth Pit

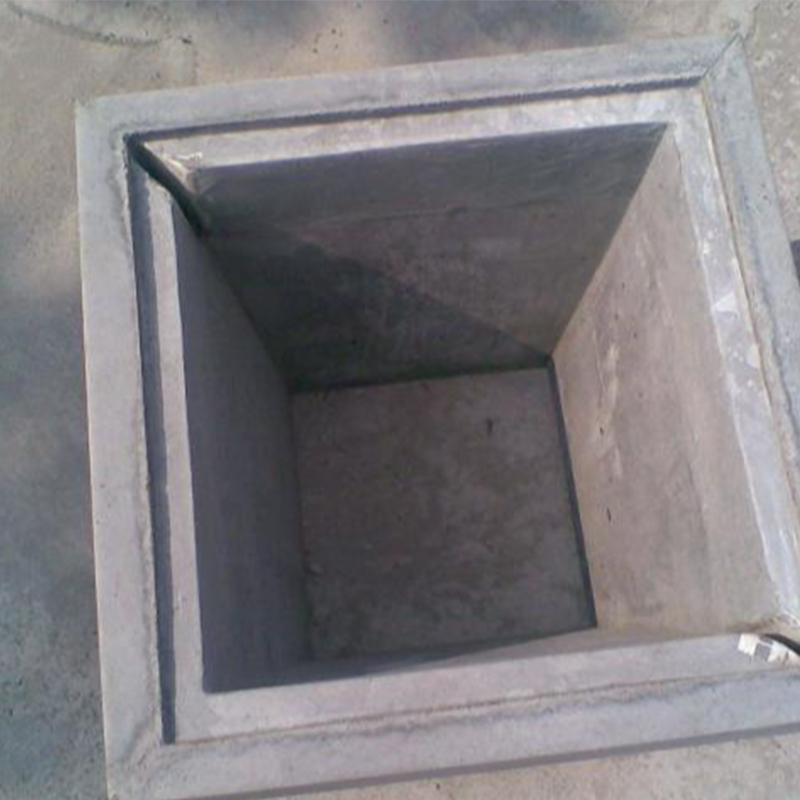

An Earth Pit is a specially designed underground space or enclosure used to house the grounding electrode (such as a ground rod) and the connection points between the electrode and the grounding conductors. Its existence protects the connection points from direct soil erosion and provides convenient access for subsequent maintenance and resistance testing.
Basic Functions of the Earth Pit
A well-designed Earth Pit system possesses three core functions:
Fault Current Discharge: When electrical equipment short-circuits or leaks, the Earth Pit can quickly guide the fault current into the earth, preventing potential rise.
Lightning Protection: In coordination with lightning discharge systems, the Earth Pit safely dissipates the huge energy generated by lightning strikes.
System Potential Reference: It provides a stable zero-potential reference for sensitive electronic equipment.
Why Every Building Needs a Reliable Earth Pit
Choosing high-quality Earth Pit systems and internal components significantly reduces system operational risks. Shaoxing Sweld Electric Co., Ltd., with its quality management systems certified by ISO9001, ISO14001, and ISO45001, ensures that every grounding product remains stable under harsh geological conditions. The reliability of the Earth Pit is directly related to personnel safety, lightning protection for electrical equipment, and the long-term operational stability of the power system.
Main Classifications and Structural Comparison of Earth Pits
Depending on geological conditions and project budgets, the construction forms of Earth Pits vary. Selecting the right materials and connection methods can significantly improve overall system efficiency.
Conventional Chemical Earth Pit vs. Maintenance-Free Solutions
| Parameters/Features | Traditional Earth Pit (Conventional Materials) | Advanced Maintenance-Free Earth Pit (Sweld Solution) |
| Electrode Material | Galvanized angle steel or iron | High-quality Copper Bonded Steel produced by Shaoxing Sweld Electric Co., Ltd. |
| Connection Tech | Bolt connection or arc welding | Professional Exothermic Welding by Shaoxing Sweld Electric Co., Ltd. |
| Reduction Material | Industrial salt + Charcoal | Dedicated resistance-reducing materials or enhancers |
| Service Life | 5 - 8 years (Prone to corrosion) | 15 - 25 years (Strong corrosion resistance) |
| Maintenance Frequency | High (Requires water/cleaning) | Extremely low (Permanently fused connections) |
| Environment Adaptability | Poor, affected by drought | Strong, excellent moisture absorption |
Key Components of an Earth Pit
To ensure the long-term stability of an Earth Pit, the full set of components provided by Shaoxing Sweld Electric Co., Ltd. has undergone rigorous testing in national certified laboratories. Core products include:
Ground Rods: Feature extremely high conductivity and corrosion resistance, serving as the energy exchange core of the Earth Pit.
Ground Wire and Stranded Wire: Ensure efficient current transmission, connecting the building's main structure to the Earth Pit.
Exothermic Welding Powder and Molds: Shaoxing Sweld Electric Co., Ltd. has an annual production capacity of 500 tons of welding powder. Combined with 7 high-speed CNC machining centers for precision mold manufacturing, it ensures that connection points within the Earth Pit reach a molecular-level permanent fusion.
Scientific Design and Layout of an Earth Pit
Designing an efficient Earth Pit involves more than just digging a hole; it requires rigorous engineering calculations and high-quality materials. Shaoxing Sweld Electric Co., Ltd., with its professional technical team, provides customized Earth Pit layout plans for different geological environments worldwide.
Soil Resistivity Testing: The Prerequisite for Earth Pit Design
Before laying out an Earth Pit, soil resistivity testing must be conducted. The resistivity level directly determines the depth, quantity, and whether additional resistance-reducing materials are needed for the Earth Pit.
Low Resistivity Areas: A standard single Earth Pit design can be used.
High Resistivity Areas: Shaoxing Sweld Electric Co., Ltd. recommends a matrix of multiple parallel Earth Pits combined with our high-efficiency resistance-reducing agents.
Spacing Requirements and Layout
To avoid mutual interference of potential gradients, the spacing between multiple Earth Pits should generally be at least twice the length of the grounding electrode.
Independent Grounding: Maintain a safe distance between the Earth Pits of high-power systems and weak-current systems.
Grid Layout: In large industrial sites, the ground rods and wires provided by Shaoxing Sweld Electric Co., Ltd. can form a grid structure through exothermic welding, connecting multiple Earth Pits.
Material Selection Comparison for Earth Pits
| Evaluation Index | Traditional Galvanized Steel | Pure Copper | Sweld Copper Bonded Steel (Recommended) |
| Conductivity | Approx. 8% - 12% IACS | 98% - 100% IACS | 20% - 40% IACS (Customizable) |
| Corrosion Life | 3-5 years (Rusts easily) | 30+ years (Expensive/Soft) | 30+ years (Strength + Corrosion resistance) |
| Installation Ease | Easy to deform | Hard to deep drill | High-strength steel core for deep drilling |
| Cost-Effectiveness | Low initial cost, high maintenance | Very high cost, prone to theft | Optimal value, safe, and anti-theft |
Standard Installation Steps for an Earth Pit
The standardization of the installation process determines the service life of the Earth Pit. Shaoxing Sweld Electric Co., Ltd. emphasizes the following steps:
1. Excavation and Site Selection
Choose a lower terrain area where moisture naturally accumulates, avoiding underground cables or gas lines. The depth of the Earth Pit usually reaches 2.5 to 3 meters.
2. Electrode Insertion and Connection
Drive the high-quality ground rods produced by Shaoxing Sweld Electric Co., Ltd. to the designed depth. Use Sweld exothermic welding molds for connections; this molecular fusion ensures that the connection points inside the Earth Pit never loosen or oxidize.
3. Backfilling and Optimization

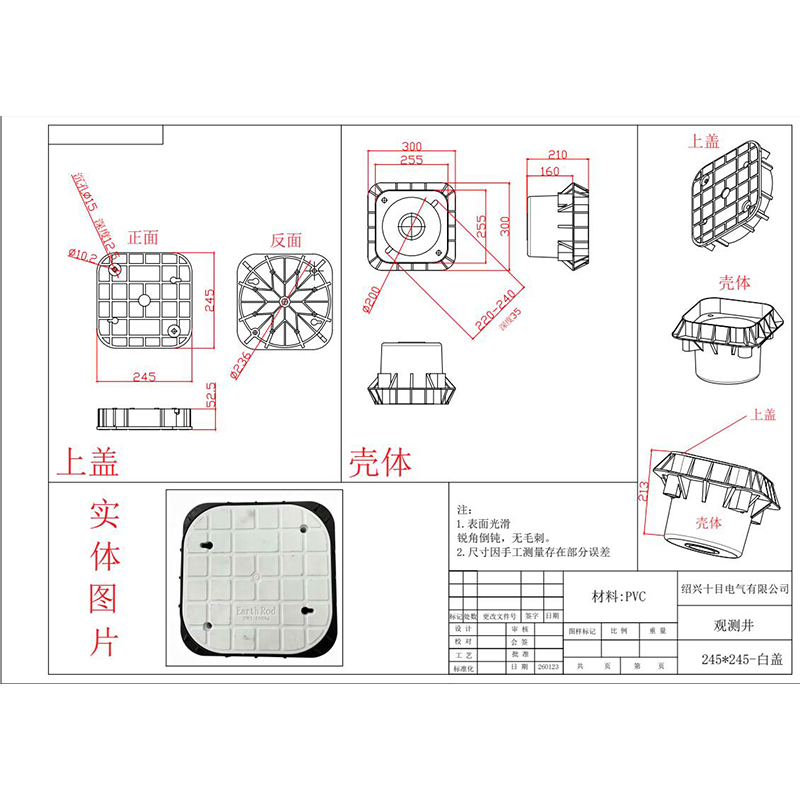

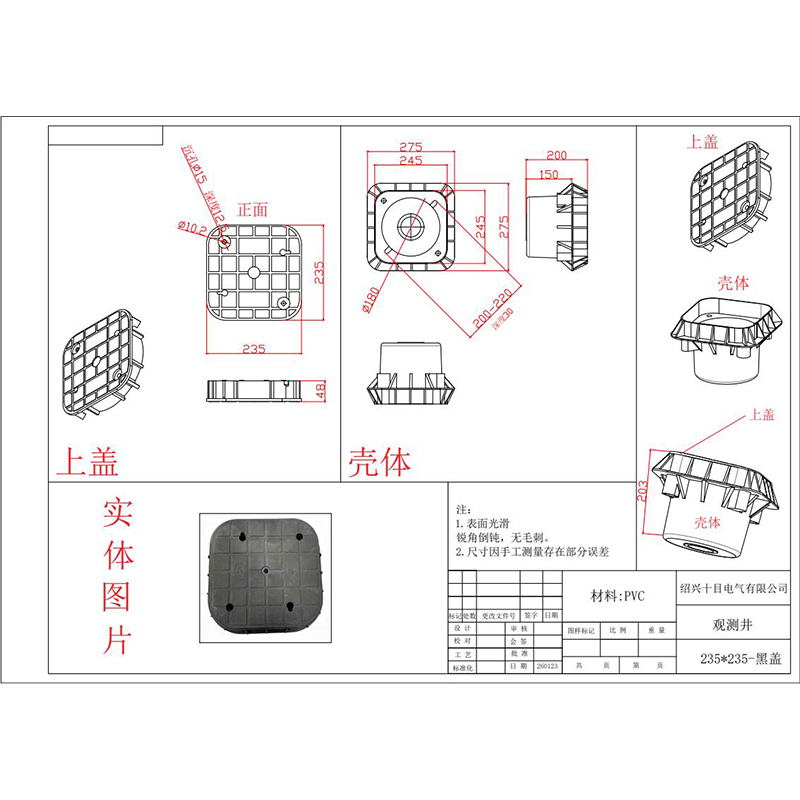

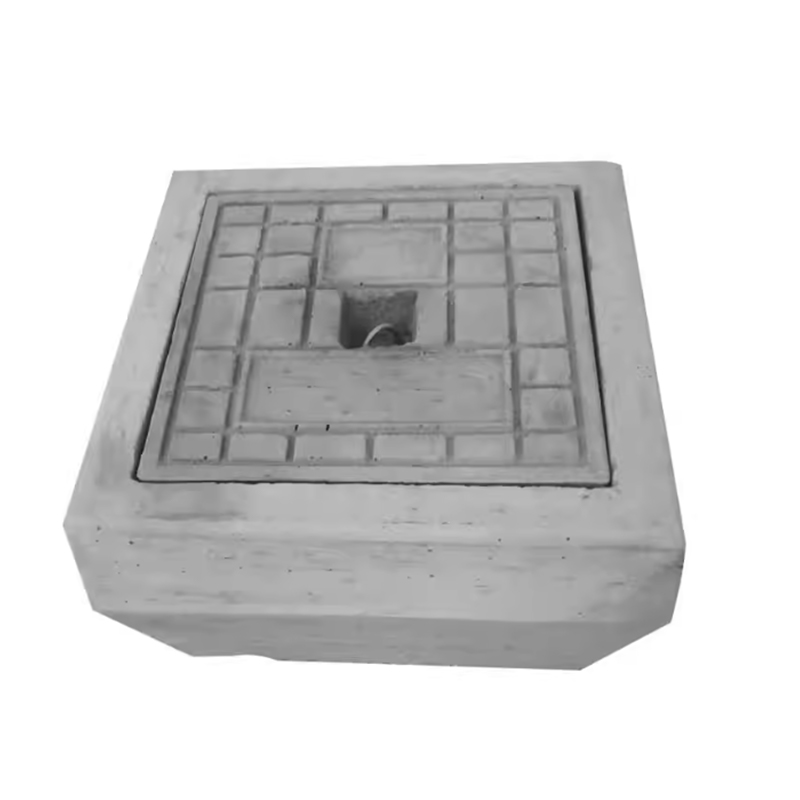

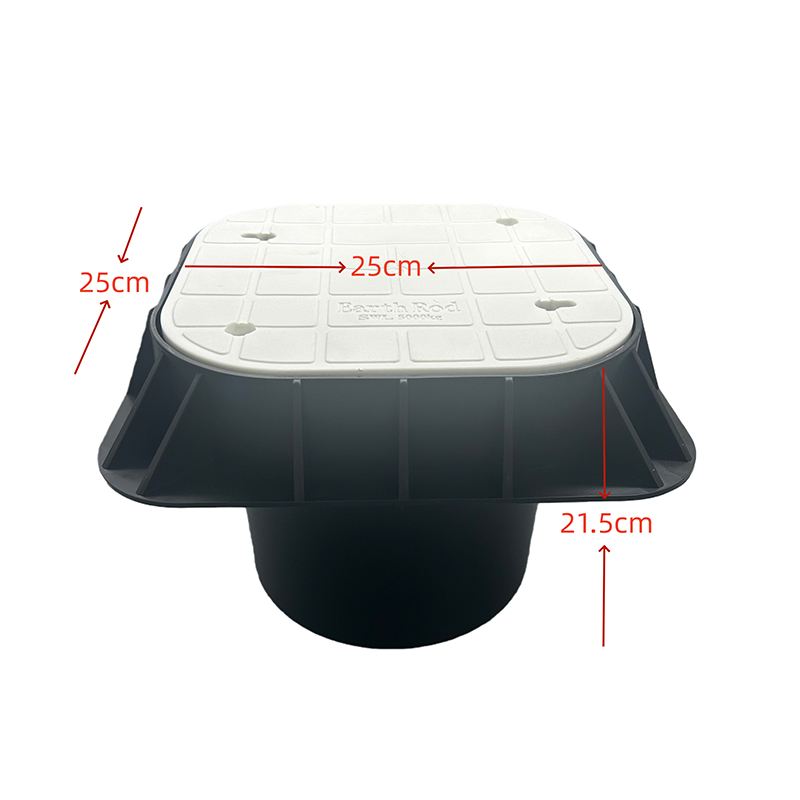

Fill the area around the electrode with low-resistance materials and install an Earth Pit Inspection Chamber to facilitate future monitoring of grounding resistance.
Performance Testing and Compliance of Earth Pits
Verifying the performance of an Earth Pit is the final line of defense for safe operation. All components produced by Shaoxing Sweld Electric Co., Ltd. have passed testing by national laboratories.
Resistance Measurement: Core Metric for Earth Pit Efficiency
Grounding resistance for an Earth Pit is typically measured using the Fall-of-Potential method.
Purpose: Ensure resistance is lower than design requirements.
Frequency: Testing at least twice a year (dry and rainy seasons) is recommended.
Industry Standard Compliance
| Compliance Item | International Standards (IEC/IEEE) | Shaoxing Sweld Electric Co., Ltd. Performance |
| Coating Thickness | Copper bonded steel layer >= 0.25 mm | Sweld uses precise plating for uniform bonding |
| Welding Quality | Must withstand high-temperature surges | Sweld welding points exceed conductor capacity |
| Mechanical Strength | Must resist deep-drilling impact | High-tensile steel core prevents bending |
| Environmental | Backfill must not pollute groundwater | Environmentally certified, stable, no heavy metals |
Long-term Maintenance and Troubleshooting of Earth Pits
Periodic Inspection Checklist
Physical Connection Check: Inspect joints inside the Earth Pit for loosening due to mechanical forces.
Corrosion Monitoring: Although Sweld copper bonded products are highly resistant, check for electrochemical corrosion at dissimilar metal joints.
Cover Integrity: Ensure the inspection chamber cover is not damaged.
Repair Solutions for High Resistance
| Symptom | Repair Solution | Shaoxing Sweld Electric Co., Ltd. Advice |
| Extreme Soil Dryness | Water treatment or electrolytes | Use Sweld long-term resistance enhancers |
| Resistance over limit | Increase electrode depth | Use Sweld threaded rods for easy extension |
| Increased Joint Resistance | Re-secure connections | Use Sweld exothermic welding for permanent repair |
FAQ
Q: Why is copper bonded steel better than pure copper for an Earth Pit?
A: Pure copper is soft and bends easily when drilling into hard soil, plus it is very expensive. Shaoxing Sweld Electric Co., Ltd. produces copper bonded steel rods that combine the high tensile strength of steel with the conductivity of copper at a better price point.
Q: Is exothermic welding really better than mechanical clamps in an Earth Pit?
A: Yes. Mechanical clamps can corrode underground. The exothermic welding from Shaoxing Sweld Electric Co., Ltd. creates a molecular bond, making the joint an integral part of the conductor, which is the preferred choice for a permanent Earth Pit connection.
Core Component Performance Table for Earth Pits
| Technical Indicator | General Industry Standard | Shaoxing Sweld Electric Co., Ltd. Standard |
| Ground Rod Tensile Strength | >= 500 MPa | >= 600 MPa |
| Copper Layer Bonding | No cracks at 90-degree bend | No peeling or cracks at 180-degree bend |
| Welding Powder Reaction | 10-20 seconds | 5-15 seconds (Stable, low smoke) |
| Mold Service Life | Approx. 50 uses | >= 80 uses (High-purity graphite) |
| Supply Capacity | - | 500t powder/year, 180 molds/day |
About Shaoxing Sweld Electric Co., Ltd.
Shaoxing Sweld Electric Co., Ltd. was established in 2018, located in Shengzhou, Shaoxing, China. The factory covers 3000 square meters and has a professional team of over 50 technical and sales elites.
As a modern manufacturing plant, we focus on the R&D and production of Earth Pit system components, including:
Exothermic Welding Powder and Molds: Equipped with 7 high-speed CNC machining centers for real-time design and rapid molding.
Grounding Hardware: Ground rods, ground wires, stranded wires, and various electrical hardware connection parts.
Lightning Rods: A complete range of lightning protection system components.
We have passed ISO9001, ISO14001, and ISO45001 certifications. For international trade, we provide special dangerous goods packaging certificates for exothermic welding powder exports and export licenses for molds. All products have passed national laboratory testing, making us a trusted partner for your Earth Pit projects. With a capacity of 500 tons of powder per year and 180 sets of molds per day, Shaoxing Sweld Electric Co., Ltd. provides real-time technical support and product supply for major global engineering projects.
