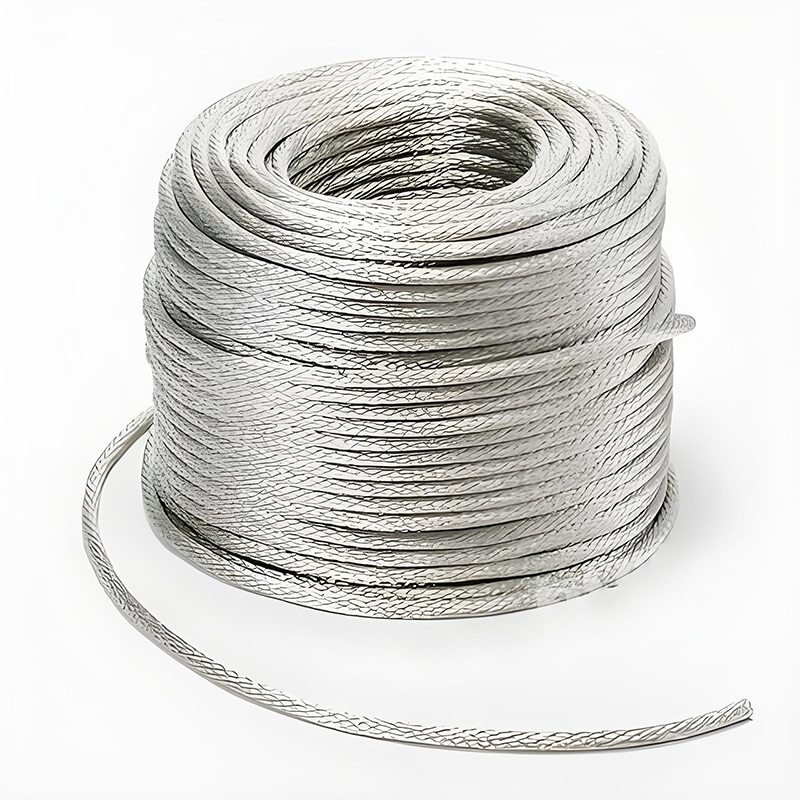

Flexible Copper Stranded Wire

Flexible Copper Stranded Wire represents a critical advancement in conductor technology, specifically designed for environments where traditional rigid wiring would fail due to mechanical fatigue or spatial constraints. Composed of numerous fine, high-purity copper filaments twisted into a unified bundle, this wire provides a unique combination of superior electrical conductivity and exceptional bendability. This "soft-drawn" characteristic allows the wire to be tucked into compact control cabinets, routed through complex machinery, or used in mobile electrical installations where frequent movement is required. Its primary function is to ensure a continuous and efficient power path while absorbing the mechanical stresses of vibration and dynamic operation, making it a staple in household appliances, electronic equipment, and industrial power control systems.

Shaoxing Sweld Electric Co., Ltd. has established a leading position in the high-performance conductor industry through its deep technical expertise in precision electrical engineering. The company utilizes seven high-speed CNC numerical control machining centers to achieve a technical closed-loop—from modeling complex installation geometries to the real-time manufacturing of high-precision molds—allowing for immediate customized engineering solutions in extreme or non-standard wiring environments. Their technical core extends beyond conductor fabrication into the mastery of molecular-level connection technology; Sweld operates an efficient production line for exothermic welding powder with an annual capacity of 500 tons. Their R&D team precisely controls material formulations to ensure that flexible copper strands achieve optimal electrical continuity and mechanical strength during the fusion process. Combined with specialized expertise in the global logistics of sensitive technical materials and rigorous empirical testing in national laboratories, Sweld provides a full-chain technical solution ranging from conductor design and precision connection to high-energy surge dissipation for global infrastructure projects.

How Does the Multi-Strand Micro-Filament Composition of Flexible Copper Stranded Wire Enhance Electrical Conductivity and Dynamic Bendability?

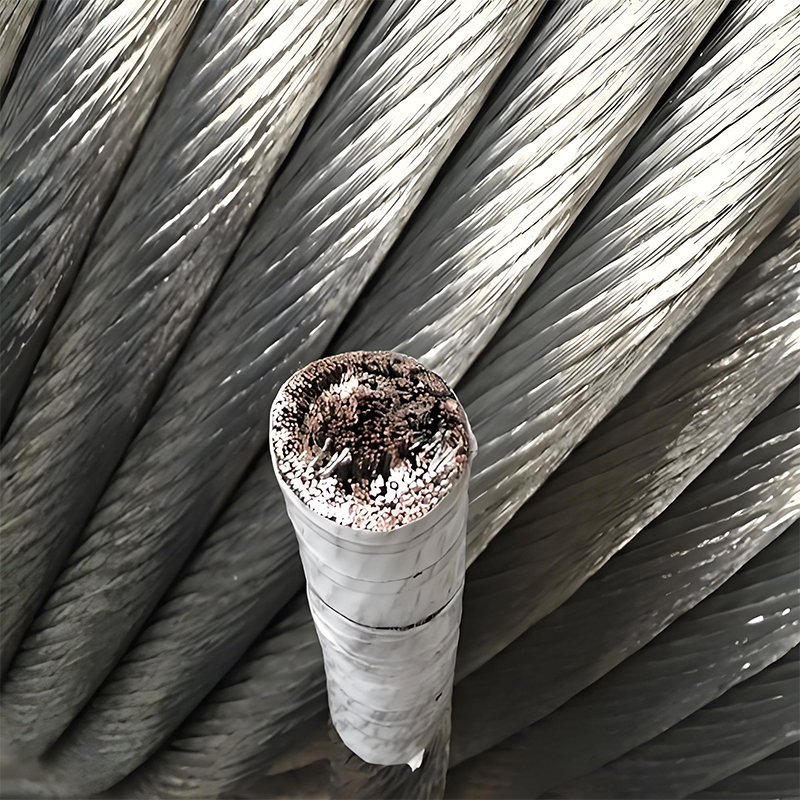

The superior performance of Flexible Copper Stranded Wire is rooted in its internal architecture. By replacing a single solid conductor with hundreds or even thousands of fine copper strands, the wire achieves physical properties that are fundamentally different from rigid conductors.

The Relationship Between Strand Diameter and Mechanical Fatigue Resistance

In a flexible wire, the individual copper filaments are drawn to much smaller diameters than those found in hard-drawn stranded products. This micro-filament design is essential for reducing the internal stress levels when the wire is bent. In a solid wire, the outer edge of a bend is subjected to high tension while the inner edge is compressed; over time, this leads to work-hardening and eventual cracking. In the Flexible Copper Stranded Wire produced by Shaoxing Sweld Electric Co., Ltd., the fine strands can slide slightly against each other during a bend, distributing the mechanical stress throughout the bundle.

This characteristic is particularly vital for mobile electrical installations and household appliances where cables are frequently coiled, uncoiled, or moved. The high-purity copper used by Sweld ensures that these filaments remain ductile. Because the wire can undergo thousands of flex cycles without the risk of breakage, it ensures the long-term safety of the equipment it powers. By maintaining this structural integrity, the wire prevents the "partial breaks" that can lead to localized high resistance and potential fire hazards in inferior products.

Surface Area Optimization and High-Efficiency Current Transmission

While the primary goal of stranding is flexibility, it also has implications for electrical performance. High-purity copper is the gold standard for conductivity, and in a multi-strand configuration, the total surface area of the conductor is significantly increased compared to a solid rod of the same gauge. This is particularly advantageous in certain high-frequency or high-current applications where the skin effect might be a consideration, although its main benefit in power control cabinets is simply the ease of termination.

Shaoxing Sweld Electric Co., Ltd. ensures that the twisting pitch of these fine wires is perfectly calibrated. A pitch that is too loose would result in a bulky, inefficient wire, while a pitch that is too tight would increase the electrical path length and resistance. Sweld’s technical team optimizes this geometry to ensure that the wire maintains a low-resistance profile, allowing it to withstand high current transmission demands without excessive heat buildup. This ensures that electrical systems operate at peak efficiency, reducing energy loss in building electrical trunk lines and industrial equipment main circuits.

Precision Manufacturing and Uniformity of the Copper Bundle

The quality of a flexible wire is only as good as its most fragile strand. If a manufacturer produces wire with inconsistent filament diameters or uneven twisting, the electrical load will not be distributed evenly, leading to premature failure. Sweld leverages its high-speed CNC machining capabilities to maintain the precision of its production molds and stranding tools.

This precision ensures that every millimeter of the Flexible Copper Stranded Wire is uniform. When the wire is stripped for termination in a power control cabinet, the strands remain organized and easy to handle. This uniformity is a hallmark of Sweld’s engineering, providing installers with a product that is not only electrically superior but also significantly more convenient to work with in complex wiring environments. This ease of installation directly translates to lower labor costs and higher reliability for the end user.

Why Is Flexible Copper Stranded Wire Essential for Complex Wiring Environments and Frequent-Operation Equipment?

Modern electrical engineering often demands that conductors fit into smaller, more crowded spaces while maintaining the ability to move or vibrate without failure. Flexible Copper Stranded Wire is the only material that satisfies these dual requirements of spatial adaptability and mechanical resilience.

Adaptability in Compact Power Control Cabinets

As industrial equipment becomes more sophisticated, the density of components within power control cabinets increases. Engineers must route conductors through tight corners and around multiple obstacles. Rigid wire is often impossible to use in these scenarios as it requires a large bending radius to avoid damage. Flexible Copper Stranded Wire, however, can be "tucked" into small spaces and bent at sharp angles without losing its electrical properties.

Shaoxing Sweld Electric Co., Ltd. produces a range of flexible wires that are specifically designed for these high-density environments. The bendability of the wire reduces the physical footprint of the wiring system, allowing for smaller cabinet designs. This is a critical factor in the modernization of building electrical systems and the installation of main circuits for industrial equipment. Because the wire conforms easily to the layout of the cabinet, it also reduces the mechanical strain on terminals and connectors, preventing the loose connections that are a common source of equipment failure.

Durability in Dynamic and Mobile Electrical Installations

Many industrial applications require cables to be in constant motion. Robotic arms, cranes, and mobile medical equipment all rely on conductors that can move back and forth millions of times. Flexible Copper Stranded Wire is engineered for this dynamic use. Its ability to absorb vibration prevents the conductor from becoming brittle over time.

In the Sweld facility, the focus on technical excellence ensures that the copper strands are treated to resist the "work hardening" that occurs during frequent movement. By using high-purity materials that have passed national certification laboratory testing, Sweld provides a wire that maintains its flexibility even after years of service. This reliability is essential for ensuring the continuous operation of critical machinery, where a single cable failure could lead to expensive production downtime or safety risks for operators.

Enhancing Safety in Household and Electronic Equipment

Safety is the paramount concern in consumer-facing electrical products. Flexible Copper Stranded Wire is used in almost all household appliances because of its ability to withstand the "abuse" of daily use. Whether it is the power cord of a vacuum cleaner or the internal wiring of a washing machine, the wire must handle constant twisting and pulling.

Shaoxing Sweld Electric Co., Ltd. integrates its expertise in electrical hardware to ensure that these flexible wires can be securely connected to plugs and internal components. The flexibility of the strands allows for a more secure "crimp" or solder joint, which prevents the wire from pulling out of its housing. This enhanced connection stability ensures that the equipment remains grounded and safe for the user, fulfilling the core conductor materials' role in ensuring safety and efficiency in electrical systems.

How Does Vertical Integration and Precision Connection Technology Ensure the Reliability of Flexible Wiring Systems?

A flexible conductor is only one part of a complex electrical system. To ensure that the system is safe and efficient, the wire must be connected to other components with the same level of precision used in its manufacture. This is where the vertical integration of Shaoxing Sweld Electric Co., Ltd. provides a significant advantage.

Precision CNC Machining for Specialized Connection Hardware

Connecting a flexible wire requires specialized hardware that can grip hundreds of fine strands without crushing or severing them. Sweld utilizes its 7 high-speed CNC machining centers to produce high-precision connection parts that are tailored for flexible conductors. These components are designed to provide a uniform pressure across the entire bundle of strands, ensuring that every filament contributes to the electrical path.

This level of precision is essential for avoiding "hot spots" at the connection point. If only a few strands are making contact with the terminal, those strands will carry the entire load, leading to overheating and potential failure. By providing custom-designed hardware and real-time manufacturing of molds, Sweld ensures that the connection is as efficient as the wire itself. This technical synergy is what allows their products to meet the rigorous demands of international power and telecommunications infrastructure.

The Role of Exothermic Welding in Permanent Flexible Connections

While mechanical connections are common in control cabinets, many grounding and industrial main circuits require permanent, molecularly fused joints. Flexible Copper Stranded Wire is an excellent candidate for exothermic welding. Shaoxing Sweld Electric Co., Ltd. is a leading manufacturer of exothermic welding powder, with an annual production capacity of 500 tons.

When a flexible wire is fused using Sweld’s exothermic welding technology, the fine strands are melted together with the connection part to create a single mass of copper. This process eliminates the contact resistance that can occur with mechanical clamps over time. Because the weld is a molecular bond, it is immune to the loosening effects of vibration and thermal cycling. This makes it the ideal solution for scenarios requiring both the flexibility of the wire for routing and the permanent stability of a welded joint for long-term safety.

Lab-Tested Solutions for International Infrastructure

Every electrical system must comply with strict safety regulations. Shaoxing Sweld Electric Co., Ltd. ensures that its Flexible Copper Stranded Wire and its complete set of products pass through national certification laboratory testing. This testing verifies the wire’s tensile strength, conductivity, and bendability under extreme conditions.

For engineers and project managers, this certification provides the assurance that the materials used in their electrical trunk lines and industrial equipment are of the highest quality. By combining high-purity materials with precision engineering and rigorous testing, Sweld ensures that their Flexible Copper Stranded Wire provides an ideal solution for modern lightning protection and grounding facilities. The resulting system is one where installation convenience and equipment safety are enhanced through the use of core conductor materials that are engineered for excellence.
