LW3 Exothermic Welding Mold for Stranded Cable to Steel Plate Connection

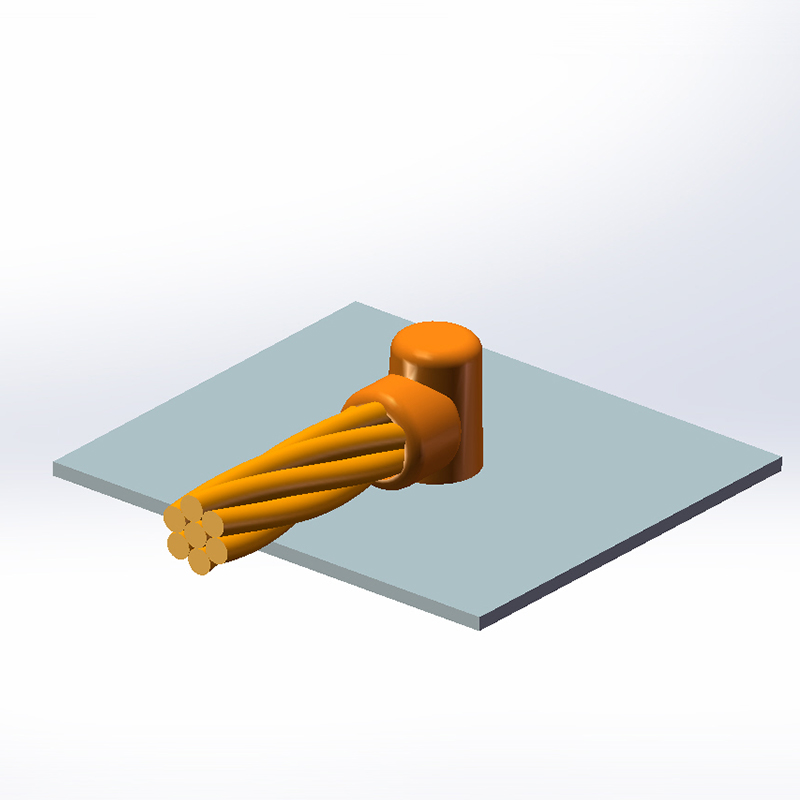

Designed for connecting stranded cable to flat steel surfaces, this mold ensures proper molten metal distribution and strong surface bonding.
Widely used in structural grounding and equipment earthing applications.

PREV：No previous article NEXT：LW1 Exothermic Welding Mold for Stranded Cable to Pipe Connection
  • Product Details
  • FAQ
Conductor A Exothermic Welding Powder Model
16mm² 45#
25mm² 45#
35mm² 45#
Φ8mm 65#
50mm² 65#
Φ10mm 90#
70mm² 115#
95mm² 115#
Φ12mm 115#
120mm²(Φ14mm) 150#
150mm²(Φ16mm) 150#
185mm² 200#
240mm² 250#
300mm² 300#


Note: Polish the plate surface flat and smooth before welding. F‑type auxiliary clamp or other fixtures can be used on the plate.

Mold Structure

A standard exothermic welding mold typically includes:
Component Description
Mold Body Main graphite structure containing the weld cavity
Mold Cover The top part is used to seal the mold during the reaction
Reaction Chamber The space where welding powder reacts
Weld Cavity Area where molten metal forms the final weld
Flow Channel Guides molten metal into the weld cavity
The mold must be used together with a mold clamp to keep the mold tightly closed during welding.

Key Features

Feature Description
Precision Machining Accurate mold alignment ensures consistent weld quality
Optimized Flow Design Smooth molten metal flow reduces porosity and defects
High Temperature Resistance Withstands the extreme heat generated during the welding reaction
Stable Weld Formation Produces strong and reliable weld joints
Easy Operation Designed for fast and simple field installation

Service Life

Typical mold lifespan:
50 – 200 weld cycles
Actual service life depends on several factors:
Proper welding operation
Adequate cooling time
Regular cleaning and maintenance
Correct handling can significantly extend the lifespan of the mold.

Maintenance & Usage Tips

To ensure stable welding results and extend mold life:
Allow proper cooling
Wait about 15–20 seconds after the reaction before opening the mold.
Clean the mold cavity
Remove residual slag after each weld using a brush or copper wire brush.
Avoid mechanical damage
Handle molds carefully to prevent cracks or deformation.
Keep molds dry
Store molds in dry conditions to maintain structural stability.

FAQ – Exothermic Welding Mold

Q1: What material are exothermic welding molds made of?
Most molds are made from high-density graphite, which provides excellent heat resistance and allows precise shaping of the weld cavity.

Q2: How do I choose the correct mold?
The mold must match:
The type of connection (cable-to-rod, cable-to-cable, cable-to-steel, etc.)
The size of the conductors
The required welding powder amount
Each mold is designed for a specific welding configuration.

Q3: How many times can a mold be used?
A typical mold can be used 50–200 welding cycles, depending on proper usage and maintenance.

Q4: Why do welds sometimes stick to the mold?
This may occur if:
The mold is opened too early
The mold cavity is not cleaned properly
Excess heat accumulates in the mold
Allowing proper cooling time usually solves this issue.

Q5: Do molds need to be replaced frequently?
No. With proper cleaning and cooling procedures, molds can be used for many welding cycles before replacement is necessary.

Q6: Do I need a clamp to use the mold?
Yes. A mold clamp is required to hold the mold firmly closed during the welding reaction to ensure safety and welding quality.
